VS.ShapeContainer()

This class is used to group and arrange children shapes in rows and columns. A ShapeContainer is always created as a child of an existing shape with the VS.Shape.AddShapeContainer() method.

var myShapeContainer =myShape.AddShapeContainer (ContainerArrangement);

The ContainerArrangement controls how the container arranges its children shapes: in a row, a column, or a matrix:

VS.ShapeContainerArrangement =
{
Row: "Row",
Column: "Column",
Matrix: "Square",
};

You don't have to specify an arrangement. If no arrangement is specified, the default arrangement Matrix will be used.

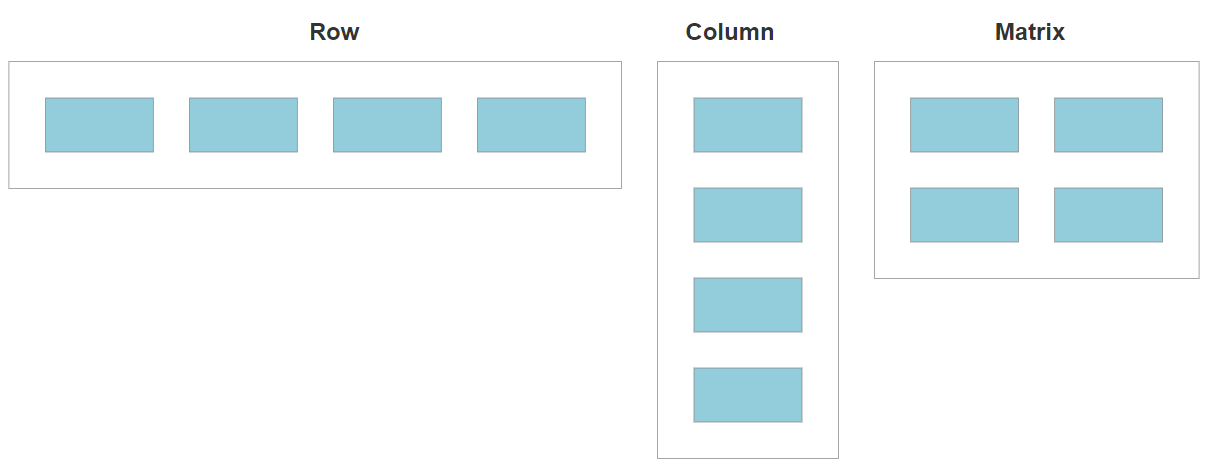

VisualScript shape container

Using the Hide() method of the parent shape of the ShapeContainer you can remove the border around the container's shapes.

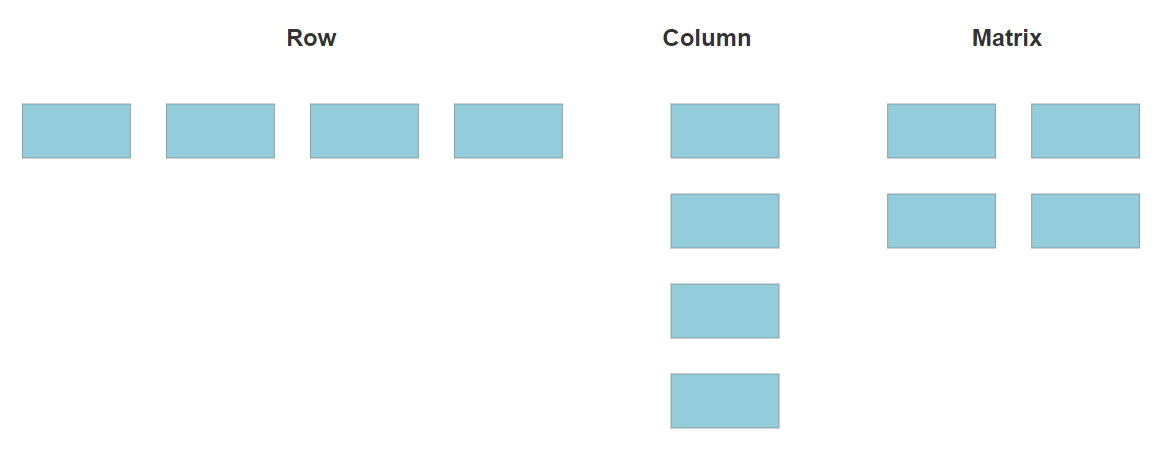

VisualScript hide shape container

Like other things in VisualScript, ShapeContainers are recursive. Any of the shapes added to a ShapeContainer can also add their own ShapeContainer. This recursive behavior allows you to create almost unlimited arrangements of shapes on a page. Read the VisualScript Cookbook for examples.

VS.ShapeContainer() Methods

These methods returns a Shape object:

The following methods return the ShapeContainer and can be chained together (myShape.SetArrangement().SetWrap().SetAlignH()):

  • SetArrangement() - Overrides the default Matrix arrangement if needed. Other arrangements available: row and and column.
  • SetWrap() - Sets the number of shapes that can appear in a row or column before they wrap.
  • SetHorizontalSpacing() - Overrides the default horizontal spacing between shapes set in 1/100 inches.
  • SetVerticalSpacing() - Overrides the default vertical spacing between shapes set in 1/100 inches.
  • SetAlignH() - Overrides the default horizontal alignment in a row. Options are center (default), left, or right.
  • SetAlignV() - Overrides the default vertical alignment in column. Options are middle (default), top, and bottom.

AddDefaultShape()

Example

myDefaultShape=myShapeContainer.AddDefaultShape();

Syntax

myDefaultShape=myShapeContainer.AddDefaultShape();

Usage

This method adds a DefaultShape to a ShapeContainer. The DefaultShape returned is an instance of VS.Shape() and using its methods to set properties like ShapeType, FillColor and so on sets the default settings for any shape added to the ShapeContainer. Individual shapes added with AddShape() can override these defaults.

AddShape()

Example

myShape=myShapeContainer.AddShape();

VisualScript add shape

Syntax

myShape=myShapeContainer.AddShape();

Usage

This method adds a VS.Shape() object to a ShapeContainer.

SetArrangement()

Example

myShape=myShapeContainer.SetArrangement(VS.ShapeContainerArrangement.Matrix);

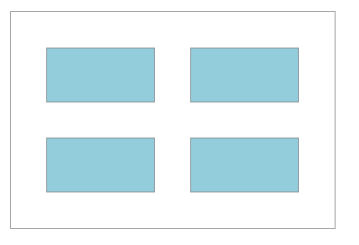

VisualScript set arrangement

Syntax

myShape=myShapeContainer.SetArrangement(arrangement);

Usage

This method can be used to change the arrangement of shapes inside the ShapeContainer. The default arrangement is Matrix. Other options available are: Row and Column.

{
Row: "Row",
Column: "Column",
Matrix: "Square",
};

VisualScript shape arrangement

SetWrap()

Example

myDefaultShape=myShapeContainer.SetWrap(3);

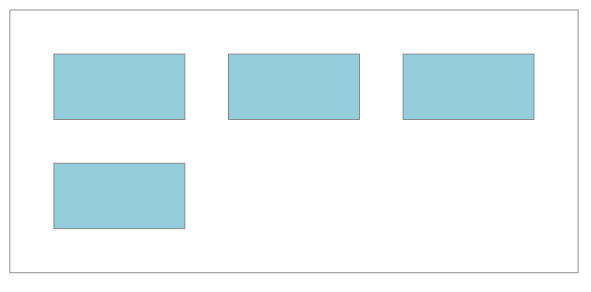

VisualScript  set wrap

Syntax

myDefaultShape=myShapeContainer.SetWrap();

Usage

This method sets the number of shapes that can appear in a row or column arrangement before the row or column wraps. Note that Matrix arrangement sets the number of row and columns automatically to create a pattern that is as square as possible.

SetHorizontalSpacing()

Example

myDefaultShape=myShapeContainer.SetHorizontalSpacing(10);

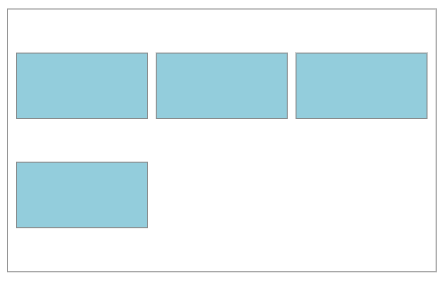

VisualScript set horizontal spacing

Syntax

myDefaultShape=myShapeContainer.SetHorizontalSpacing(spacing);

Usage

This method overrides the default horizontal spacing (50/100") between shapes in 1/100" increments.

SetVerticalSpacing()

Example

myDefaultShape=myShapeContainer.SetVerticalSpacing(10);

VisualScript set vertical spacing

Syntax

myDefaultShape=myShapeContainer.SetVerticalSpacing(spacing);

Usage

This method overrides the default vertical spacing (50/100") between shapes in 1/100" increments.

SetAlignH()

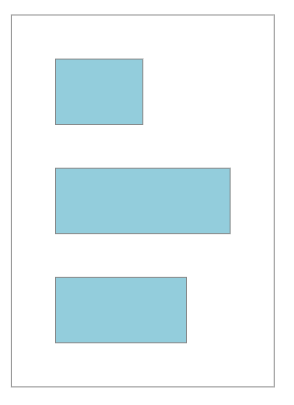

Example

myDefaultShape=myShapeContainer.SetAlignH(VS.TextAlignH.Left);

VisualScript set align H

Syntax

myDefaultShape=myShapeContainer.SetAlignH(alignment);

Usage

The method overrides the alignment of shapes in a column so that they are positioned with their left edges aligned (Left), centers aligned(Center), or right edges aligned (Right). Center is the default setting.

SetAlignV()

Example

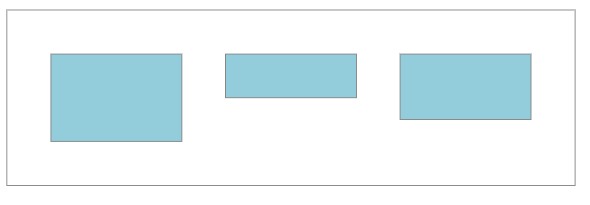

myDefaultShape=myShapeContainer.SetAlignV(VS.TextAlignV.Top);

VisualScript set align V

Syntax

myDefaultShape=myShapeContainer.SetAlignV(alignment); //Top,Bottom,Middle - Default is middle

Usage

The method overrides the vertical alignment of shapes in a row. Shapes of different heights are arranged in a row so that they are positioned with their top edges aligned (Top), middles aligned (Middle), or bottom edges aligned (Bottom). Middle is the default setting.
