Floor Planning Made Easier, Faster, and More Precise
Based on your feedback, we greatly re-engineered our
floor plan tools to make floor planning even easier,
faster, and more precise.
You'll now be able to define more accurate and smaller
measurements like fractions of an inch and up to 6 decimal
places for metric scales.
Your floor plans will be easier to create using new

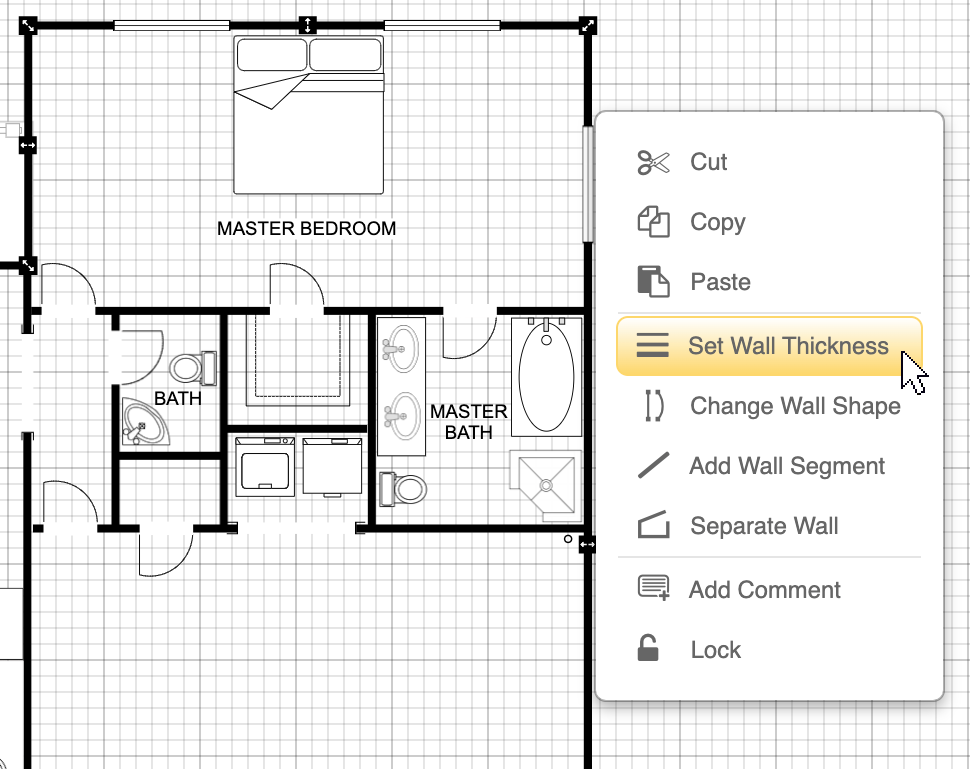

right-click menu options and other workflow improvements

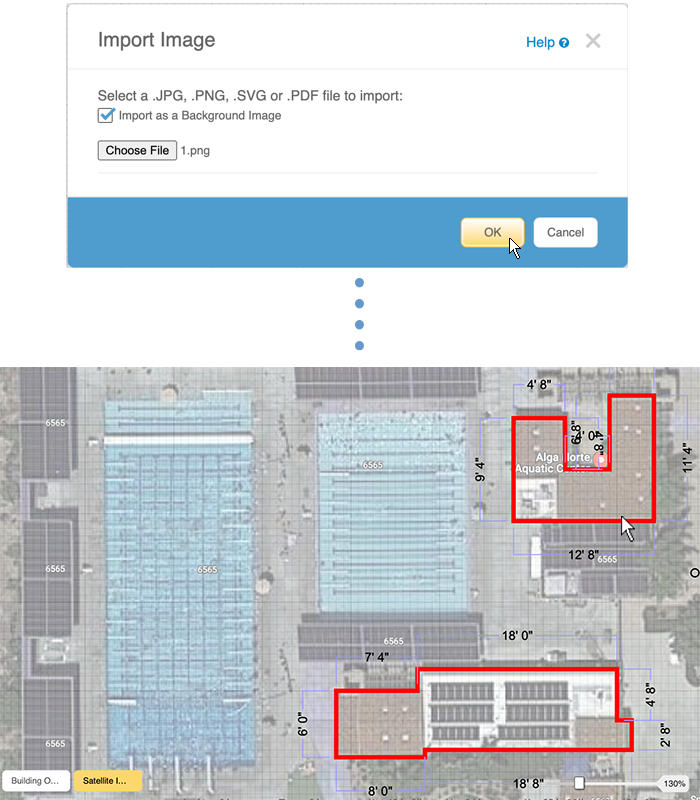

including the ability to add background images

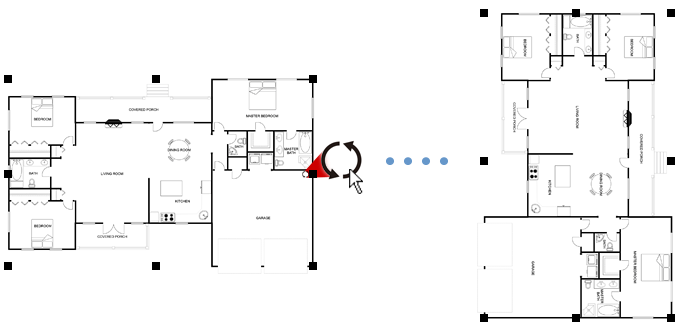

and to rotate your entire design.

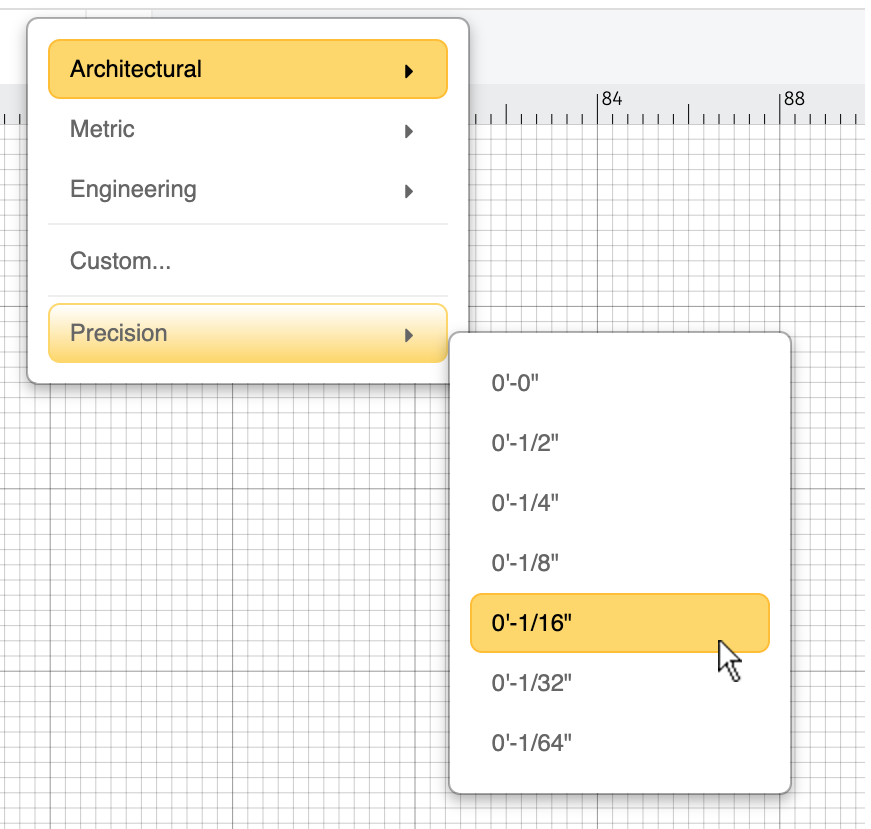

To give you more control and allow you to have just the right amount of detail for any design, SmartDraw now lets you specify the level of precision in your floor plan.
For architectural scales, the default level of precision is 1/16 of an inch, but you can get as detailed as 1/64 of an inch.
For metric scales, you can specify the number of decimal points you want. The default is set to two decimal places, but you can specify up to 6 decimal places if you need to.
This setting will let you be more precise with the length of wall segments and dimensions of scaled objects in your plan.
It will also allow more precision when using coordinates to place objects. Learn more about setting precision for your floor plan.
